GB71 TRANSOM BOARDING LADDER
GB21 Aft Lower Shroud Fork fitting on top.
Threading fitting on bottom.
GB80 AC SYSTEMS CIRCUIT BREAKER
GB35 Genoa Winch Clam Cleat
GB82 SOLAR PANEL 10 watt, sized for Rhodes mounting
Copyright by General Boats. All rights reserved;
GB48 LAZARET HATCH
Part # PARTS RELATED TO:
$250
$250
$495
$700
Path Two: Sheet outside forward lower and
inside upper shroud to fair lead and Cam Cleat
on aft side of cabin trunk.
GB69 BOW PULPIT
$200.
GB14 GENOA FURLER ASSEMBLY
A General Boats product available thru ROC membership.
Includes an aluminum tube with offset sail slot, top and
bottom bearings. Bottom furling drum assembly with a
free wheeling slotted furling line guide to prevent line
from leaving drum and fouling.
GB32 Genoa Track End
GB49 MOTOR TROLLEY
GB34 Genoa Winch Handle
Other Sail Control Hardware
GB39 These small fair leads
GB40 along with these small cam cleats
GB41 along with these spring supported small stand up blocks
GB42 along with one small fair leads mounted on a block to
bring it on level with its cam cleat, are replacements for
a) Genoa furling line hardware.
b) Boom Topping Lift line hardware and for
c) Future additions such as GB's Self Tending Jib.
GB79 AC SHORE POWER RECEPTICLE starboard cabin trunk

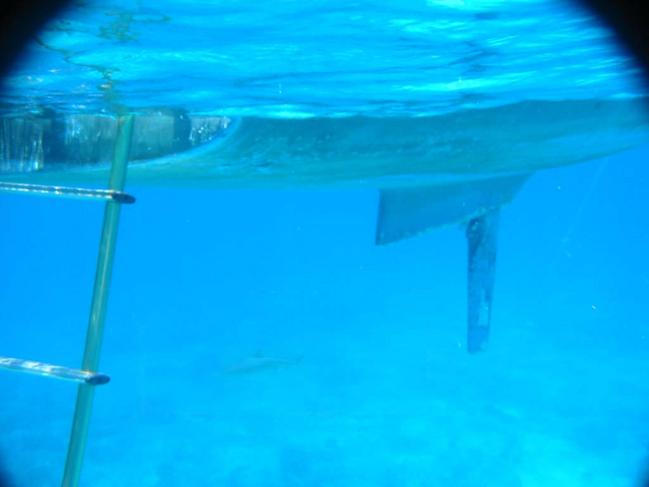

Do you know what you are looking at?
You are under water looking at a
conventional Rhodes centerboard.
One of the advantages of a still in production boat is living and learning.
In the mid eighties GB began working on a different kind of cb, based on the work of navel architect Nils Lucander. GB named their version the Diamondboard.
(see "Services" page for view)
Advantages of the diamondboard:
Less draft. Simpler maintenance.
Readily self retracts when striking anything; cannot push up and fracture the trunk cap.
SAILS
GB23 IMF Sally Sail Main. Note: This sail is made to GB's
proprietary specifications. If purchased elsewhere it is
not covered by any GB guarantees.
GB24 175% FURLING GENOA
Self Cover. Window. Sheet angle indicator. Air Flow
indicators. Leech and foot control lines.
GB30 Genoa Car on track
GB63 RUDDER CLUTCH KNOB tensions blade for remaining
fully lowered yet retracts on encountering anything.
GB47 SLIDING HATCH
$1,495
GB74 BOOM ROOM (not ready for prime time) under
ELECTRICAL SYSTEMS: Many parts for the Rhodes AC and DC systems may be had from box or marine stores. Those few offered here are better ordered here in that they may best match cut outs and screw holes in your boat.
SAIL CONTROL HARDWARE
* IMF MAIN SAIL * info:
GB67 CABIN TOP HANDRAILS The set
GB25 130% FURLING GENOA
Self Cover. Window. Sheet angle indicator. ,
GB62 RUDDER CLUTCH PARTS other than knob.
GB68 CABIN TRUNK BOARDING GRAB RAILS The set
GB31 Genoa Track
$650
new
GB65 SET OF RUDDER BLADE CONTROL LINES
$2,500
$150
GB46 POP TOP
GB50 ROPE TRAY
GB43 RHODES 22'S Stunning all GLASS TILLER
$225
GB10 IMF MAST
A General Boats product only available for ROC members.
Includes: GB IMF extrusion with:
4 sheave mast top fitting with 2 upper shroud tangs,
Connections for jib and double back stays assembly.
SS spreader sockets with tangs for 4 lower shrouds.
Side cleats for specialty sails.
$150
$700
GB28 IMF Outhaul Car
A General Boats product available thru ROC membership.
Maintenance free,it has an ownership lifetime guarantee. .
Unlike other in-mast furling systems, the car's hard clew
sail connection (Included) allows any draft wanted with no
decoupling of the sail and boom planes, thus multiplying
the traveler's productive role in pointing performance.
GB64 AFT RUDDER HEAD CLEAT for holding blade up at any
angle. Good for sculling.
GB26 Boom Block
With becket And swivel snap shackle top for one step less
easier and faster mast raising and lowering.
GB27 Fiddle Block
With integrated main sheet cleating.
$995
$35
RIGGING
The Rhodes has 9 stays: 1 jib stay, 2 back stays, 2 upper
shrouds and 4 lower shrouds. (Stays that support a mast
port and starboard are referred to as shrouds.) There are
5 comforting scenarios for the 9 stays: Jib stay failure? 2
forward lower shrouds keep mast from falling on the crew.
4 lower shrouds = no mast pumping (important with IMF).
9 supports work in synergy, limiting the mast's sideways movement when going through the mast raising arc. The
2 back stays make possible a novel shock absorbing
traveler design that transforms 'Coming About' from a
'No. No', to a useful alternate coming about option.
Plus, double back stays make for rapid jib stay tensioning.
GB58 PINTILE, UPPER
GB59 PINTILE, LOWER
RUDDER HEAD ASSEMBLY
Most all parts are only available from General Boats.
The glass tiller and rudder blade are both listed in the Fiberglass Parts section. Each inserts, attaches and pivots between the rudder cheek plates with a 3/8" machine screw.
Inquire
$395
GB75 BIMINI vinyl/fabric. GB's variable positioning design
GB76 INTERIOR CUSHIONS 6 piece set
GB72 HINGED MAST STEP TABERNACLE
SAIL CONTROL HARDWARE
* GENOAS * info
Supply houses carry fair leads and cleats that will
suffice for genoa sail control. However, and this
goes for other hardware, GB hardware may align
with holes in boat so no finish repairs required.
The Rhodes genoa controls offer 3 lead paths.
Elect the ideal sheet path for course and weather.
Path One: Sheet outside 3 shrouds to Genoa Car
on genoa Track atop gunnel and to Genoa Winch.
GB13 IMF FURLING TUBE
A General Boats product only available for ROC members.
This GB IMF Furling extrusion has an offset sail slot,
top & bottom bearings and two sail mounting eye straps.
(If replacing the IMF main sail, important to use one
obtained from GB for proper operational use.)
PROPRIETARY STAINLESS STEEL PARTS
These, and many other stainless steel parts, are
custom made products fabricated for the Rhodes
sailboats and available thru ROC membership.
( To be continued. A lot more parts go into
a Rhodes 22. Plus new ones are a-coming. )
PRICE ORDER.
$600
$395
GB17 Jib Stay. Eye fitting on top. Fork fitting on bottom
GB18 Back Stay Assembly. Two stays.
Attached blocks for jib stay tension.
Attached cups for traveler assembly
Eyes on bottom for transom adjusters.
GB19 Upper Shroud. Fork fitting on top,
Threaded fitting on bottom.
GB20 Forward Lower Shroud. Fork fitting on top.
Threaded fitting on bottom.
$200
$85
$600
$150
$425
GB78 COCKPIT FILLER CUSHIONS closed cell 4 piece set
A boom block with becket And snap shackle, attaches to
one of two rotating tangs at the aft end of boom. A
fiddle block with cam cleat, attaches to the car of GB's
inventive, continuous line, cleat less, traveler . A hard
connected sail clew fixes to an outhaul car in boom slot.
The totally of this GB sail control hardware results in a
dramatic upgrading of pointing ability performance.
$1,595
GB45 RHODES 22'S RUDDER BLADE
$245
$1,295
GB44 RHODES 22'S DIAMONDBOARD
$400
$1,100
GB81 DC SYSTEMS CIRCUIT BREAKERS CONTROL PANEL
$800
$1,095
$800
$350
GB60 MOTOR LINKAGE CLIP for when not in use.
GB61 SPACERS FOR CHEEK PLATES set of 3
$795/895
GB36 Genoa Winch Clam Cleat Wedge
GB57 GUNTALS the pair. . .
GB38 Genoa sheet Cam Cleat, large
$375
$200
GB37 Genoa sheet Fair Lead, large
GB22 Turnbuckle Open barrel
2 K
Inquire
GB55 RUDDER HEAD CHEEK PLATE, PORT
GB56 RUDDER HEAD CHEEK PLATE, STARBOARD
$200
GB54 TILLER LOCK BOX Locks hiking stick on course for no
hands sailing. Recessed installationin, port or starboard.
GB70 TWO SECTION STERN RAIL $1,395
GB77 COCKPIT CUSHIONS closed cell 3 piece set
GB12 IMF BOOM
A General Boats product only available for ROC members.
Includes: Mating goose neck for IMF Boom Slider, exit
slot for IMF furling line, aft top turning block for IMF out-
haul line's turning for path through boom to underside
continuous locking vertically mounted cam cleat. Cast
aft boom extrusion fitting with two rotating tangs:
One for topping lift line. One for main sheet boom block.
Path Three: Sheet outside forward lower shroud, inside upper and aft lower shrouds to large fair lead and large cam cleat atop of aft cabin trunk.
Use same two parts numbers: GB37 and GB38.
GB73 POP TOP ENCLOSURE (a cruising must) installed
GB16 BOOM SLIDER ASSEMBLY
A GB product, only available thru ROC membership.
This assembly has 3 bearing levels at the lower end of the
IMF furling tube. The boom slider face plate houses the
spring pin for automatically locking boom ar hight wanted,
provides docking for boom goose neck and is home to the
internal shelf for the bottom furling tube bearing. The sail's
center of effort is set by the boom height elected.
$100
GB51 SINK
GB53 HIKING STICK adjustable for use anywhere in cockpit.
Comes with tiller retaining clip for when not being used.
RHODES 22 PROPRIETARY FIBERGLASS PARTS
all Rhodes glass parts are in house products made to
order for ROC members
GB29 GB TRAVELER INVENTION
A General Boats product available thru ROC membership.
5' ss bar with all hardware mounted and ready to use.
Requiring no cleats. it is positioned by a single continuous
push or pull control line from port or starboard seating.
GB33 Genoa Winch
GB66 LIFE RAILS ( not your wimpy Life Lines ) The set
Find your part needed by thinking what it is related to
GB15 POP TOP SLIDER.
A General Boats product available thru ROC membership.
This part, in effect, is one of the three legs that support
the raised Pop Top. The fact that the forward "leg" slides
in the mast slot guarantees the security of the pop top's
fore and aft movement. It is machined from solid plastic
block and has only two installed elements: A spring pin
assembly that automatically locks at the proper height
when raising the Pop Top. And a "U" bracket that secures
the Pop Top to the pop top slider and thus to the mast.
GB52 DIAMONDBOARD TRUNK CAP
"SOFTWARE" relates to items such as:
the Pop top enclosure, Bimini and Cushions.
GB11 SPREADERS set of two with adjustable presser tips.
